| Color |
 |
| Green |
|
| Applications |
|
Greenhouse and gardening
Delivery of water and fluids |
|
| Construction |
|

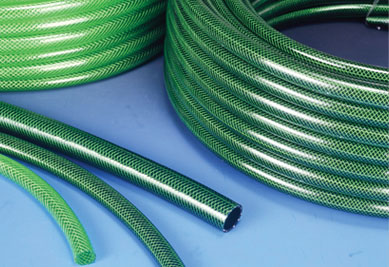

| Tubing reinforced with cross weaved polyester yarn |
|
| Features and Benefits |
|
Easy handling, lightweight and flexible
Smooth inside for minimal flow resistance |
|
|
| Specification : GH |
 |
Nominal Size
(inch) |
I.D.
(mm) |
O.D.
(mm) |
Pressure (10˚C) |
Standard Length
(m/coil) |
Working
(kg/cm²) |
Bursting
(kg/cm²) |
| 16 |
16 |
21.0 |
7 |
40 |
50 |
| 19 |
19 |
24.0 |
6 |
35 |
50 |
| 25 |
25 |
31.0 |
5 |
25 |
50 |
|
|
|
|
|
|
|
